Summit Products Company

Call us at 1-87-SHELVING

We ship decking from California, Tennessee, New Jersey and Michigan



Stock Wire-Decking For Standard
1 5/8" Step Beams
(Ship points for Decking and Baskets - CA, TN, NJ, MI)
  Size No. Support
Part Number Depth x Width Channels Weight Capacity
WD2446SC 24 X 46 3 14 4400
WD3046SC 30 X 46 3 17 3550
WD3634SC 36 X 34 3 17 2700
WD3646SC 36 X 46 3 20 2950
WD3646LC 36 X 46 3 18 2870
WD3652SC 36 X 52 3 22 3010
WD3658SC 36 X 58 3 24 3040
WD4234SC 42 X 34 3 20 2350
WD4246SC 42 X 46 3 24 2540
WD4246XLC 42 X 46 3 20 2000
WD4246LC 42 X 46 3 22 2440
WD4246HC 42 X 46 4 27 3130
WD4252SC 42 X 52 3 26 2580
WD4252HC 42 X 52 4 29 3330
WD4258SC 42 X 58 3 28 2600
WD4258HC 42 X 58 4 31 3370
WD4446SC 44 X 46 3 25 2430
WD4446HC 44 X 46 4 28 2990
WD4452HC 44 X 52 4 30 3010
WD4834HC 48 X 34 4 26 2200
WD4846SC 48 X 46 3 27 2230
WD4846LC 48 X 46 3 25 2130
WD4846HC 48 X 46 4 30 2740
WD4852HC 48 X 52 4 33 2870
WD4858HC 48 X 58 4 35 2950
WD6046HC 60 X 46 4 38 1890

  • Stock wire-decking designed to fit standard 1 5/8" step beams.

  • All stock wire-decking use 2"x4" mesh with 4 gauge wire.

  • 36" deep wire-decking and "LL's" use 3 support channels, others use 4.

  • Stock wire-decking is designed to fit on rack where top of beam is up to 1 7/8" wide.

  • Stock wire-decking features our standard gray paint finish.

Stock Flared Channel Wire-Decking
For Structural Or Box Beams
(Ship points for Decking and Baskets - CA, TN, NJ, MI)
  Size No. Support
Part Number Depth x Width Channels Weight Capacity
WD2446SC-F 24 X 46 3 14 4460
WD3646SC-F 36 X 46 3 21 2970
WD3652SC-F 36 X 52 3 23 3010
WD4246XLC-F 42 X 46 3 21 2000
WD4246SC-F 42 X 46 3 25 2540
WD4246HC-F 42 X 46 4 28 3100
WD4252SC-F 42 X 52 3 27 2580
WD4446SC-F 44 X 46 3 25 2430
WD4846HC-F 48 X 46 4 31 2740
WD4852HC-F 48 X 52 4 34 2870

  • Stock flared-channel wire-decking designed to fit box or structural beams.

  • All stock flared-channel wire-decking use 2"x4" mesh with 4 gauge wire.

  • Number of flared-channels per decks:  3 each (36" deep decks) or 4 each (42" & 48" deep decks).

Click on photos for enhancement:

SP

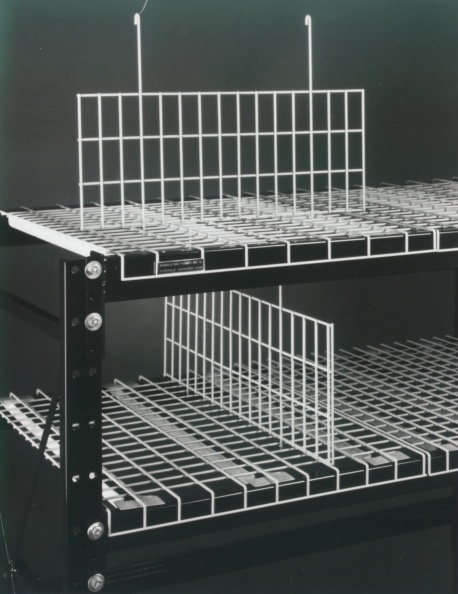

Divider Detail
 		SP

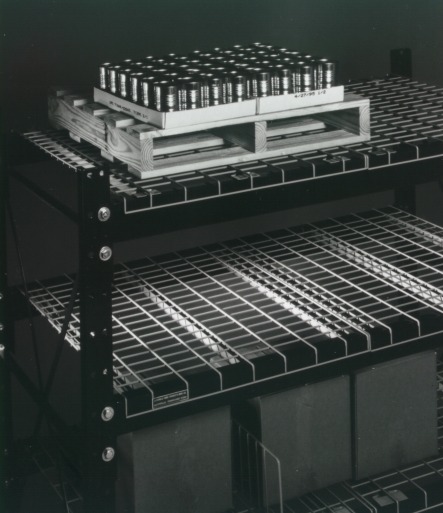

Sample Stock
SP

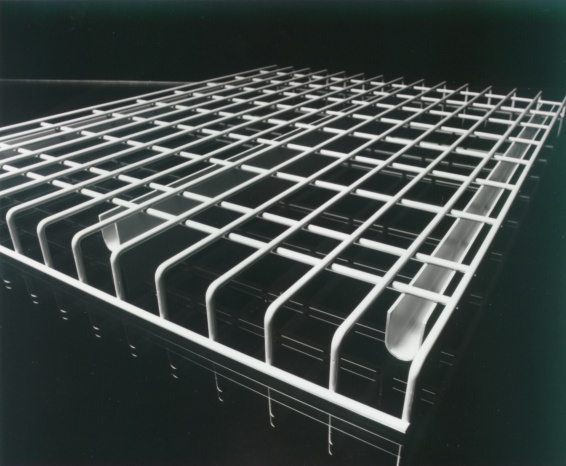

Decking Detail

Decking/Shelving Accessories:
SP

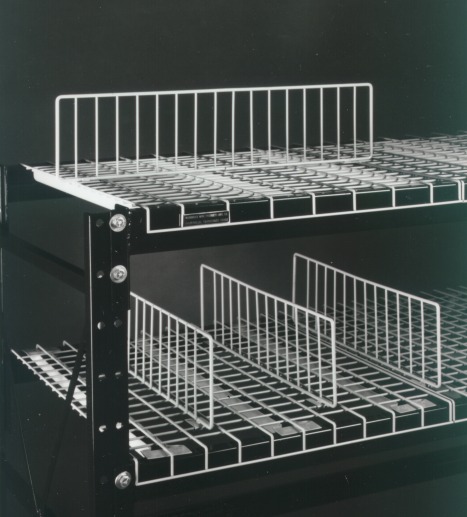

Clip-On Dividers		 SP

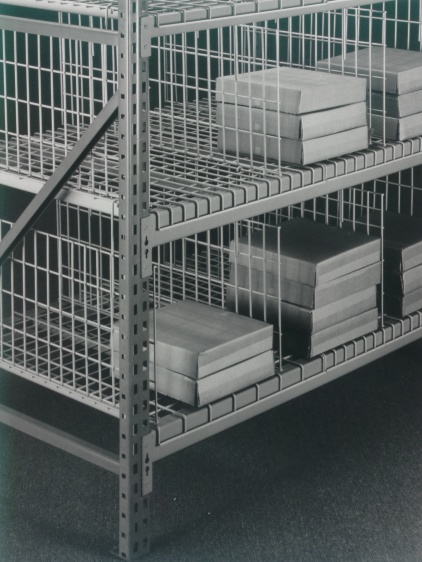

Hanging Dividers
SP

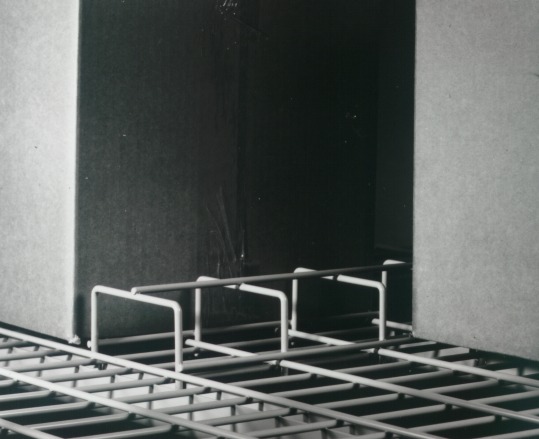

Carton Stops


Contact Summit Products

Contact us to find out how our containers, shelving
and baskets can help your business stay in shape!

Summit Products Company
3541 Cimmeron Road
York, PA. 17402

1-87-SHELVING
1-877-435-8464

Email: sales@summitproductsusa.com



With many customizable options, it is the cost efficient, visual,
ventilated way to store, stack or ship anything!

You have it?  We can store it!

We provide timely written quotations and detailed drawings upon request. In addition, we ship prototypes within two weeks.
